Prairie Clay vs Freeze-Thaw: Why Champaign Blacktop Cracks From Underneath

Every sealcoating company in the country says freeze-thaw is the enemy, and in Champaign that is only half the story. Freeze-thaw is a surface phenomenon: water gets into a crack, freezes, expands, widens the crack, thaws, gets in deeper. It is real here, and the numbers are substantial, with roughly 123.5 days a year at or below freezing at the Willard Airport station. But if freeze-thaw were the whole explanation, Champaign driveways would fail the way driveways fail in a rocky northern town, with damage radiating outward from existing cracks and edges.

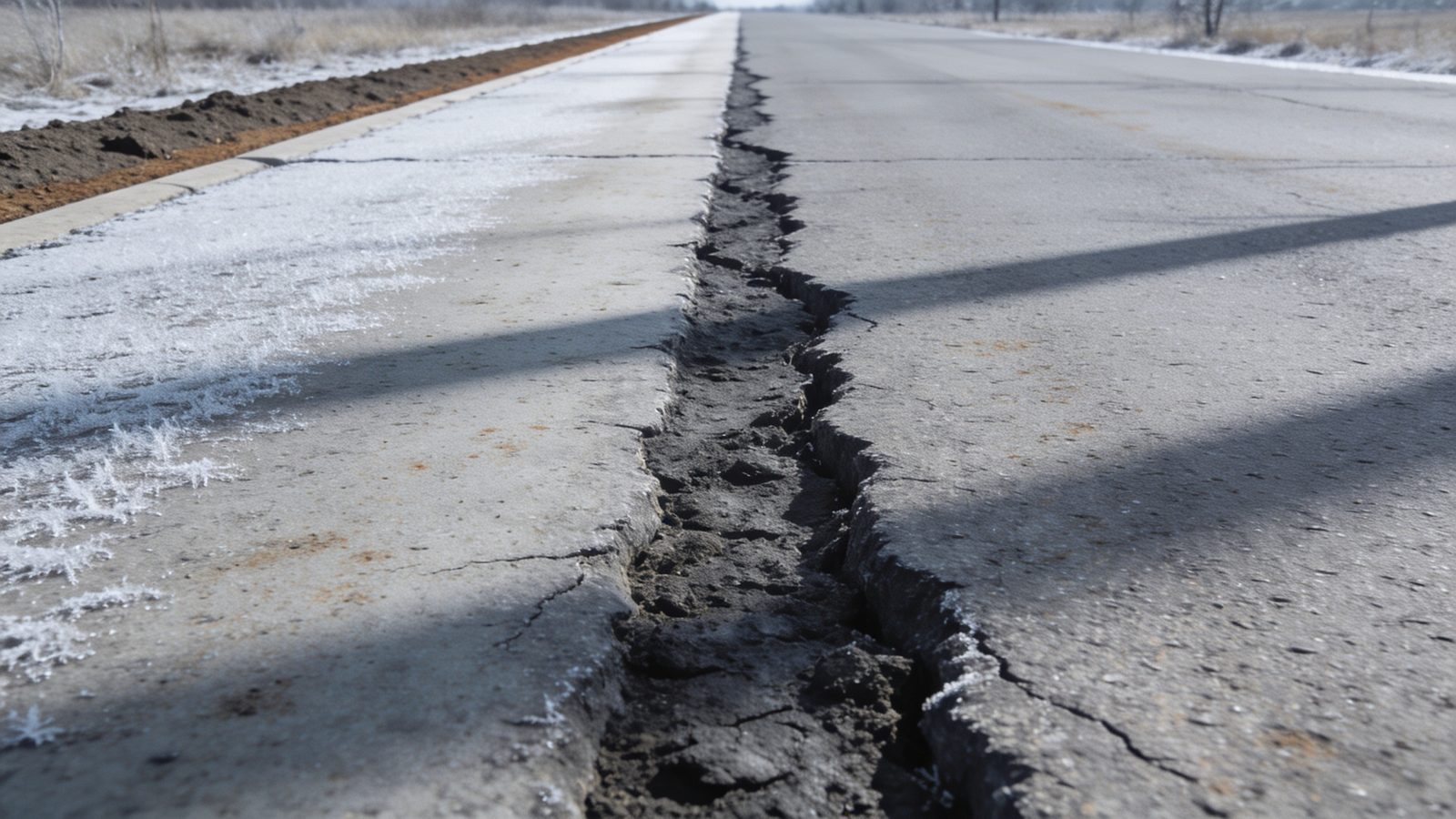

They do not. They fail with long, coherent cracks that run the length or width of the pavement and reappear in the same place after being filled, with slow settlement in areas that hold water, and with a springtime softness that goes away by July. That pattern is the signature of a base that is changing size and losing support, not just a surface being pried apart. The reason is the ground. Champaign County happens to be the reference location for two of the most consequential soil series in Illinois, and one of them is officially classified with the mineralogy of shrink-swell clay.

The soil under Champaign is literally the reference sample

Drummer is the Illinois state soil. The USDA official series description puts its typical pedon in Champaign County, Illinois, on the University of Illinois south farm near Urbana. That is not a coincidence of geography so much as a statement about what this county is made of: when soil scientists needed a defining example of the deep, dark, poorly drained prairie soil that made central Illinois farmland famous, they dug it here.

Drummer is classified fine-silty, mixed, superactive, mesic Typic Endoaquolls. In plainer terms it is a very deep, poorly drained soil formed in 40 to 60 inches of loess or other silty material over loamy stratified outwash, averaging 20 to 35 percent clay in the particle-size control section. Endoaquoll is the part worth noticing: aqu- means it is a wet soil, saturated in its natural condition, which is why nearly all of it had to be tile-drained before it could be farmed.

The wider setting matches. Champaign County sits inside the Grand Prairie Natural Division, described as a vast plain formerly occupied by tall-grass prairie, with fertile young soils developed from loess, lakebed sediments and glacial drift, where natural drainage was poor and marshes and prairie potholes were common. That is the landscape your driveway is built on. It was engineered into farmland and then into subdivisions, but the underlying material is still a fine-textured, water-holding, low-relief plain.

Smectitic is the word that matters

Drummer's companion on the slightly higher ground is Flanagan, and Flanagan's typical pedon is also in Champaign County. Its taxonomic class is fine, smectitic, mesic Aquic Argiudolls. The word in the middle is doing enormous work. Soil taxonomy names the dominant clay mineralogy, and smectitic means the clay fraction is dominated by smectite, the mineral family that takes water into its crystal structure and physically expands, then contracts when it dries.

Flanagan averages 35 to 42 percent clay in the particle-size control section, with 35 to 42 percent in the upper part of the argillic horizon and 25 to 35 percent lower down. That is a lot of clay, and a large share of it is the kind that changes volume. The Illinois state soil booklet is direct about the practical consequence, noting that reinforced foundations are needed to prevent structural damage due to shrinking and swelling. Buildings on this ground get engineered for it. Driveways almost never do.

This is the mechanism people miss. A driveway slab does not care whether the soil beneath it is strong in an abstract sense. It cares whether the support is uniform and stable. When a clay subgrade swells in spring under the wetter half of a driveway and shrinks in a dry August under the part that gets sun, the pavement is being asked to bend across a base that has changed shape. Asphalt is flexible, but not indefinitely, and it relieves that stress by cracking along the line of maximum bending.

That is why filled cracks in Champaign so often reopen in the same place. The crack is not a wound that heals. It is the pavement's expansion joint, chosen by the pavement, at the place where the ground beneath it moves most. Filling it correctly with hot rubberized sealant that stays flexible is the right response. Expecting it to never come back is not.

The water table arrives in January and leaves in May

Here is the part that makes Champaign genuinely different from most sealcoating markets. Drummer's official series description records an apparent seasonal high water table sitting from about half a foot above the surface to a foot below it, between January and May in most years. Flanagan carries a perched seasonal high water table one to two feet below the surface. In other words, the wettest condition of the year in the ground under Champaign pavement coincides exactly with the freezing season and the spring thaw.

Stack that against the climate record. About 25.6 days in December, 27.7 in January, 24.5 in February and 18.5 in March have a low at or below 32 degrees. Those are precisely the months when the subgrade is at its wettest. Water in soil expands when it freezes just as water in a crack does, and saturated fine-textured soil is exactly the material that heaves. Then in March and April the ice releases and the subgrade briefly loses much of its bearing strength, which is why springtime is when soft spots appear and why potholes tend to open in the same weeks every year.

Sealcoating does not stop any of this. What it does is control the one variable a property owner actually has: how much surface water is added to a base that is already near saturation. An open quarter-inch crack across a driveway is a linear drain delivering rain and snowmelt directly into the subgrade at the worst possible time of year. Closing it does not dry out the water table, but it removes the property owner's own contribution to the problem, and that contribution is not small.

What freeze-thaw adds on top

The surface story still matters, and the shape of it here is unusual. Champaign is not a place of deep sustained cold. The Willard Airport normals show only about 6.1 days a year with a low at or below zero degrees, against 123.5 days at or below 32. The ratio is roughly twenty to one. This is a market of shallow, repeated freezes rather than a season-long lock-up.

Look at January specifically. The normal high at Willard is 33.5 degrees and the normal low is 17.2 degrees. The average January day in Champaign begins below freezing and finishes above it. That is a full freeze-thaw transition on a typical day, in the coldest month, as the normal rather than the exception. Multiply that by the 27.7 January days that reach or pass below freezing and you have a picture of constant cycling rather than occasional extremes.

The metro also has a very wide annual temperature range to work with. The Champaign-Urbana record shows a high of 109 degrees on July 14, 1954 and a low of 25 below zero on four separate occasions in a record going back to 1888. Asphalt expands and contracts across that range every year, and every expansion cycle works at whatever cracks the base movement has already opened. The two mechanisms are not independent. Base movement opens the crack; freeze-thaw and thermal cycling widen it; water gets deeper; base movement gets worse.

Snow is the delivery mechanism. Champaign-Urbana averages about 23.2 inches a year, concentrated in December at 6.6 inches and January at 6.8 inches, with February at 5.8 and March at 2.6. That snow sits on the pavement, melts on the days the high clears 33 degrees, runs into the cracks, and refreezes overnight. A snow pile pushed into the corner of a lot is a slow-release water source doing this for weeks.

How to read your own pavement

You can usually diagnose which mechanism is dominant on a given driveway by looking at the shape of the damage. Long, coherent, roughly straight cracks that run the full width or length of the pavement and reopen after being filled point at base movement. So do slow depressions that have deepened over several years, and soft or spongy areas that show up in March and firm back up by June. That is prairie clay behaving the way prairie clay behaves.

Damage radiating from an existing crack, spalled edges near a filled joint, small chunks lifting near the crack shoulder, and general surface raveling point at freeze-thaw and oxidation. That is the surface losing its binder and then being pried at by ice. It is the mechanism sealcoating addresses most directly, and it is the one where a regular cycle pays off most visibly.

Alligator cracking, an interlocking web of small pieces, means the base under that specific area has stopped carrying load. On Champaign clay this most often shows up where water collects: the low corner of a lot, a spot below a downspout outlet, the bottom of a sloped drive. That area is past sealing and needs full-depth patching, and if the drainage that caused it is not corrected, the patch will fail again in a few years.

The practical program that follows from all of this is unglamorous. Keep water off the pavement and out of the subgrade: clear the drains, extend the downspouts, keep the ditch or swale flowing, and do not pile snow in the low spot. Fill the cracks while they are narrow, with material that stays flexible. Seal on a three to five year cycle to slow the oxidation that makes the surface permeable in the first place. Everything on the cost page is cheaper than what happens when those three things get skipped for a decade.
